OPEN MOLDED GRATING

KORPLEX – OPEN MOLDED GRATING

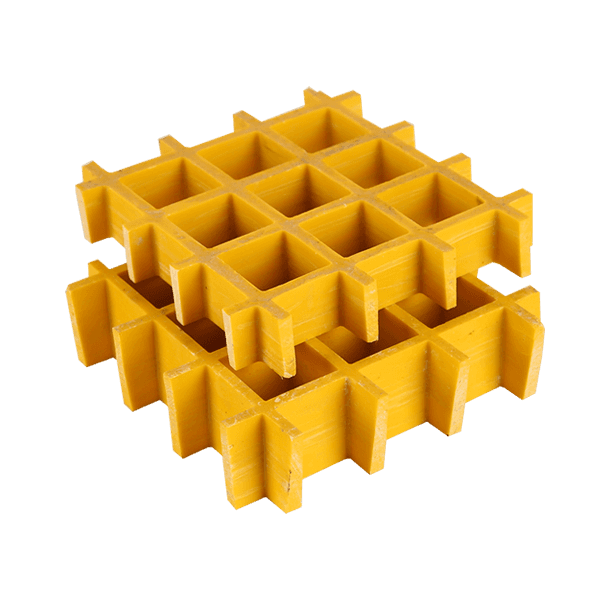

IGI molded fiberglass grating is one –piece, reinforced polyester or vinylester (FRP) grating, available in standard panels and size.

It is manufactured by interweaving continuous, thoroughly wetted, fiberglass strand with thermosetting resin systems. Standard panels are available in three resin systems, two top surface configurations, two panel sizes three standard grid patterns.

Typical applications include floor systems, walkways, work platforms, stairs, ramps, trench covers & catwalks, has been successfully used in many industries including food processing, beverage, chemical processing, water & waste water treatment, metal finishing, pulp / paper, transportation, pharmaceutical, textile, oil/ gas & mining / smelting/refining.

TYPICAL PANEL SIZE & WEIGHT



ITEM CODE  SANDARD PANEL SIZE WEIGHT
GG-1510 1” Thick x 4’ Wide x 8’ Long 43 Kg.
GG-1510 1” Thick x 4’ Wide x 12’ Long 63 Kg.
GG-1515 1 ½ ” Thick x 4’ Wide x 8’ Long 60 Kg.
GG-1515 1 ½ ” Thick x 4’ Wide x 12’ Long 90 Kg.
GG-2020 2” Thick x 4’ Wide x 12’ Long 94 Kg.

STANDARD GRID PATTERNS & DIMENSIONS

ITEM GRID DIMENSIONS DETAILS
GG-150 1”   Thick, 1 ½” x 1 ½” Square grid.
Bearing bars 0.2350” Thk.
Cross bars 0.2350” Thk.
Open Area of 70%
GG-1515



 1 ½”   Thick, 1 ½” x 1 ½” Square grid.
Bearing bars 0.250” Thk.
Cross bars 0.250” Thk.
Open Area of 70%
GG-2020


 		 2”   Thick, 2” x 2” Square grid.
Bearing bars 0.3125” Thk.
Cross bars 0.3125” Thk.
Open Area of 72%

STANDARD RESIN SYSTEM & COLOR &lt ;>

Standard Korplex resin system are made from premium grade resins.

The three standard resin systems are:-

    • PFR– Polyester resin system with class 1 fire retardancy, as per ASTM E-84. Moderate corrosion resistance.
    • IFR Plus- Premium grade Isophthalic Polyester resin system with Class 1 fire retardancy, as per ASTM E-84.
    • PFR & IFR resin systems meet USDA standards for incidental food contact.

Available colors for PFR & IFR are green, yellow, dark grey & light grey.

  • VFR– Vinyl Ester resin system with class 1 fire retardancy, as per ASTM E-84. For maximum corrosion resistance IGI’s standard resin system specify VFR..
  • Available colors : Yellow orange & drack grey..

Other resin system and colors are available on special order. All Korplex resin system an ultraviolet (UV) inhibitor.

AVAILABLE TOP SURFACE

  • Grit top – Integral embedded silica sand to a nominal depth of 3/16”
  • Meniscus – Concave half-moon cross section
  • Applied Grit – Epoxy grit bonded to meniscus top panels.

LOAD & DEFLECTION DATA

The Load & Deflection Data provided in these table are intended guidelines only, to help you determine the proper grating size for your application. The use of different resin system and top surface options can produce variations up to 15% in these values. Because the product will be used in environments and under operating conditions that are not within our control, we cannot guarantee the performance of the grating. FRP products have low modulus of elasticity but high tensile strength, therefore olds are generally limited to the allowable deflection determined by the end user. The following data are based on the tests utilizing panels supported on two sides only. Additional stiffness can be achieved by using cross supports.

GG-1510 SQUARE, 1" THICK (1 1/2 " X 1 1/2" )

Clear Span Concentrated Load, in Lbs, Deflection in inches .250" Defl. .375" Defl.
100 250 500 750 1000 1500 2000
18" 0.039 0.098 0.196 0.293 0.391 ** ** 640 960
24" 0.093 0.232 0.464 ** ** ** ** 270 410
36" 0.313 ** ** ** ** ** ** 80 120
48" ** ** ** ** ** ** ** 35 50

GG-1510 SQUARE, 1" THICK (1 1/2 " X 1 1/2" )

Clear Span Uniform Load, in Lbs, Deflection in inches .250" Defl. .375" Defl.
50 75 100 150 200 250
18" 0.018 0.028 0.037 0.055 0.055 0.092 695 1035
24" 0.058 0.087 0.116 0.174 0.232 0.290 220 330
36" 0.293 0.440 ** ** ** ** 45 65
48" ** ** ** ** ** ** 15 52

GG-1515 SQUARE, 1 1/2" THICK (1 1/2 " X 1 1/2" )

Clear Span Concentrated Load, in Lbs, Deflection in inches .250" Defl. .375" Defl.
100 250 500 750 1000 1500 2000
18" 0.012 0.03 0.060 0.090 0.120 0.181 0.241 2060 3090
24" 0.029 0.071 0.143 0.214 0.285 0.428 ** 860 1290
36" 0.096 0.241 0.482 ** ** ** ** 260 385
48"* 0.228 ** ** ** ** ** ** 110 160
60"* 0.446 ** ** ** ** ** ** 55 85

GG-1515 SQUARE, 1 1/2" THICK (1 1/2 " X 1 1/2" )

Clear Span Uniform Load, in Lbs, Deflection in inches .250" Defl. .375" Defl.
50 75 100 150 200 250
18" 0.006 0.008 0.011 0.017 0.023 0.028 2170 3260
24" 0.018 0.027 0.036 0.054 0.071 0.089 685 1030
36" 0.090 0.135 0.181 0.271 0.361 0.451 135 205
48"* 0.285 0.428 ** ** ** ** 45 65
60"* ** ** ** ** ** ** ** **

GG-2020 SQUARE, 1" THICK (1 1/2 " X 1 1/2" )

Clear Span Concentrated Load, in Lbs, Deflection in inches .250" Defl. .375" Defl.
100 250 500 750 1000 1500 2000
18" 0.008 0.020 0.040 0.060 0.080 0.120 0.160 2950 4420
24" 0.017 0.043 0.086 0.129 0.171 0.257 0.343 1455 2200
36" 0.048 0.120 0.240 0.360 0.480 ** ** 520 785
48"* 0.110 0.275 ** ** ** ** ** 230 340
60"* 0.229 ** ** ** ** ** ** 110 165

GG-2020 SQUARE, 1" THICK (1 1/2 " X 1 1/2" )

Clear Span Uniform Load, in Lbs, Deflection in inches .250" Defl. .375" Defl.
50 75 100 150 200 250
18" 0.004 0.006 0.008 0.012 0.016 0.20 2840 4260
24" 0.011 0.016 0.021 0.032 0.043 0.054 1165 1745
36" 0.045 0.068 0.090 0.135 0.180 0.225 280 410
48"* 0.138 0.206 0.275 0.413 ** ** 90 135
60"* 0.358 ** ** ** ** ** 35 55
